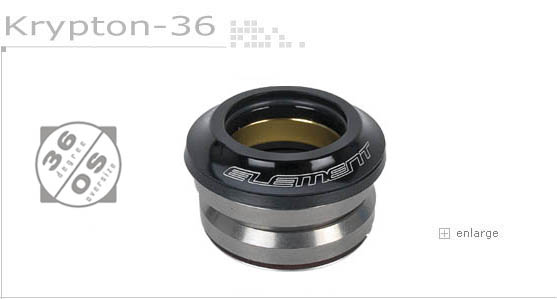

Krypton-36 Oversize Integrated Headset
[Model No. AD-9]

The Krypton-36 integrated headset is standard issue for Element Technic frames. It utilizes the 36° Oversize angular contact bearing ( ACB ) . Although not as common as the 45?ACB standard , there should be little need to replace it; in more than a thousand frames over four years, we have seen neither bearing nor head tube failure. Of course, replacements are always available from Element.

The headset has these important features:

  • Ø 5/32" ball, oversize: 25% larger than standard balls
  • 36° cartridge chamfer has a larger contact area to the headtube
  • Ø 50mm head tube, stiffer and stronger
  • No cups: too-free installation and better aligned bearings
  • Weight:only 85g
