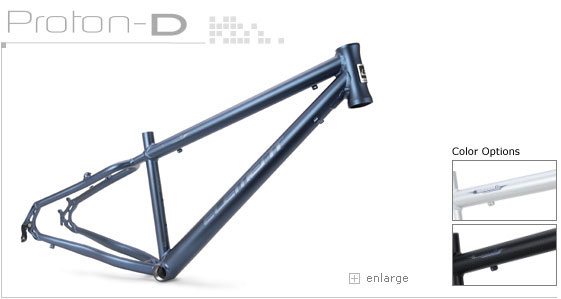

Proton-D Triple-Butted Alloy XC Hardtail
[Model No. MD-12]

Frame Features

Technical Spec
  • Sizes: 14.5" / 16.5" / 18" / 19.5"
  • Frame weight (16.5"): 1.45kg
  • Disc brake or V-brake
  • Max tire width: 2.2" (with disc brake)
  • See detail at back of catalogue
  • Geometry in Tech section


Color Options
  • Silver gloss (frame set only)
  • Indigo satin (LX complete bike only)
  • Black matte (Deore complete bike only)
Proton-D frameset
  • Silver gloss
    includes:
  • Element Krypton-36 large-ball integrated headset
  • Seat-collar
  • Hydraulic line adapters for TT cable guides
  • Cable-guide for BB
  • Bottle screws


Intended Use:
  • XC
  • Trail / Enduro
  • Adventure
  • All-Mountain
Recommended Forks:
  • Manitou: Skareb, Black or Minute
  • Fox: FLRT, FX or TALAS
  • RockShox: SID or Reba
  • Marzocchi: Marathon or MX
Recommended Components:
  • SRAM: X.7
  • Shimano: LX
