XC Hardtail Frame Geometry and Spec

XC bike-fitting is simple:
  • Each size increases in length 18mm, both top-tube and wheel-base.
  • Choose appropriate frame size for your height and body.
  • Fine-ture the fit with Element XC stems, available in lengths from 70mm ~ 120mm.

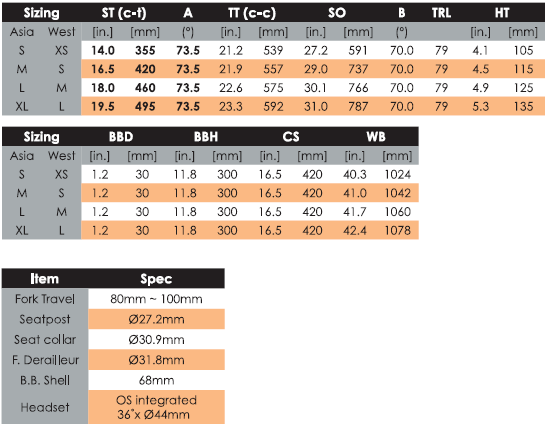

Frame Geometry:

XC Frame Spec:
