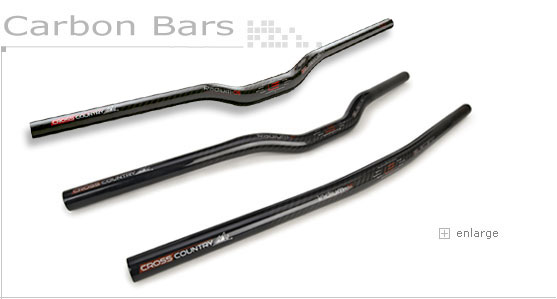

Carbon Fiber Handlebars



Technical Information:
Element Technic carbon-fiber handlebars are the strongest and most reliable available. Internally butted and tapered progressively from the stem clamp outwards. Developed with a systems-engineering approach, to consider the interaction of the bars with stem, shifters and bar-ends, they pass the most demanding mechanical testing.

Element carbon-fiber handlebars equal or exceed the impact-strength of the leading carbon handlebar. Since we developed these handlebars three years ago, the carbon-fiber layup has been adopted and re-labelled by two of the most-respected brands in Freeride (A___c & A____r).

  • Intended usage: XC / Enduro / All-Mountain
  • Superior impact and fatigue strength
  • Multi-butted and tapered full carbon-fiber
  • Extra reinforced under stem and brake lever clamping areas
  • Alloy internal rings at ends for bar-end and crash resistance
  • Gloss finish with color logos
  • For use with Ø25.4mm stems

  Click here to compare all Element handlebars.




Indium-X Flat bar
[Model No. HD-11CF]

  • Flat Bar
  • Ø25.4mm x 580mm width x 7° sweep
  • Weight: 135g



Radium-F Riser bar
[Model No. HD-22CF]

  • Riser Bar
  • Ø25.4mm x 650mm width x 9° sweep, 35mm rise
  • Weight: 165g





Radium-OS
[Model No. HD-26]

  • Ø31.8mm Riser Bar
  • 660mm width, 8° sweep, 25mm rise
  • Weight: 185g
