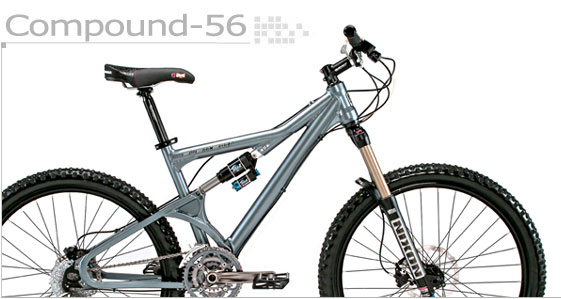

COMPOUND-56 -- PREMIUM FULLY
[Model No. MD-F14] |
| |
| |
 |
| |
| NEW MODEL |
- All-Mountain / FreeRide-Lite Fully
- Travel adjustments:
• 135mm (5.3”) / 160mm (6.2”).
- Head angle adjustments:
• All-Mountain 68.5° / Free Ride 67.5°.
- Torsionally stiff for tracking precision
|
|
| |
|
|
|
| EXCLUSIVE DETAILS |
- Element-specific Fox Shox DHX Air 4.0
- Open-Source Pivot (OSP) Position
• sealed cartridge bearings
- A.S.A.P.™ kinematics
• Vertical axle-path for AM
• absorbs drops and big-hit
- Very low standover height on all frame sizes
- 1point5 head tube
- Fusion™ 36-OS adjustable headset included
• Adjustable head tube angle and stack
• Fine-tuning range for 145~170mm forks
|
| DETAILS |
- Materials:
- Color: Shades of Grey
- Frame Weight (16.5”): 2.8 kg
- Adjustable E.G.S.™ geometry
- Standard Sizes: 16.5” / 18” / 19.5”
- Made in Taiwan
|
| INTENDED USE |
- All-Mountain / Enduro / FreeRide Lite
- Suggested Forks (140mm ~ 160mm):
• Fox 36 TALAS RC2
• Manitou Nixon Platinum
|
| |
|
| |
| |
